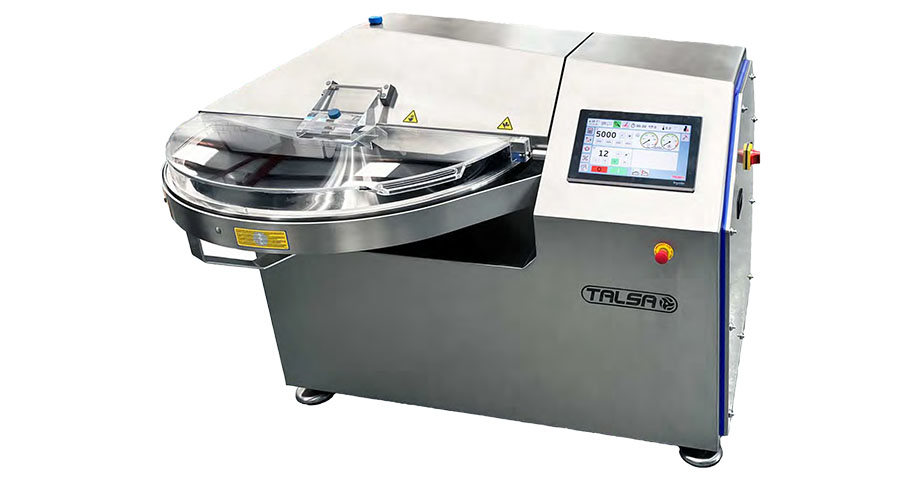

Talsa Talsa K95s Supreme Digital Industrial Bowl Chopper

Download:

Talsa Talsa K95s Supreme Digital Industrial Bowl Chopper

Qty:

Description

Advantages Overview:
• New vibration reduction technology at high revs, collaboration with the UPV Polytechnic University.
• 4 onscreen buttons for direct selection of knife and bowl speeds, freely configurable
• New vibration reduction technology at high revs, collaboration with the UPV Polytechnic University.
• Slow mixing speed, variable 50 to 500 rpm, forward/reverse.
• German BE-Maschinenmesser knives, special high-resistance KUT steel. Minimum space between all knives and the bowl thanks to its large central diameter.
• Excellent professional results with meat, vegetables, vegan/ vegetarian food, and more.

Stainless steel frame
• Very solid, 220 kg (K135s) cast stainless steel bowl, with outer rim to prevent liquids or dough from spilling.
• Completely stainless: entire frame, external and internal, in AISI304 stainless steel, as well as all possible hardware and components.
• Low height of the bowl, for a more comfortable use.
• Very robust construction, heavy machine, between 2300 and 2600 kg (K135s).
• Adjustable, stainless steel machine feet, non-slip and vibration absorbing.

• Standard equipment
• Removable 6-knife head and compensating rings for use with 3.
• Control panel with large 15” Schneider Electric digital touch screen, all information displayed simultaneously and in large size.
• Motorized stainless-steel knife lid for effortless lifting and lowering.
• Interactive recipes can be stored and executed directly on the machine's screen.
• Transparent noise protection cover with an automatic decrease of knife speed.
• Completely stainless: entire frame, external and internal, in AISI304 stainless steel, as well as all possible hardware and components.

Optional equipment
• PowerPlus: stronger knife motor for heavy applications.
• Manual unloader arm with motorized extracting disc, variable speed 50-150 rpm.
• Hydraulic bin loader and hydraulic unloader arm with motorized extracting disc, variable speed 50-150 rpm.

Features

Specifications

Model K95s
Bowl capacity 95 liters (25 Gallon)
Approximate batch size soft mix ± 20 - 70 kg (± 44 - 155 lbs), tough mix ± 20 - 50 kg (± 44 - 110 lbs)
Machine power standard: 25 kW / 34 HP, PowerPlus: 33 kW / 45 HP
Knife motor standard 22 kW / 30 HP, PowerPlus 30 kW / 41 HP
Bowl motor 1,5 kW / 2 HP
Unloader disc motor 0.37 kW / 0.5 HP
Max Power - Standard Motor 380/400 V 42 A, 460/480 V 37 A, 220/230 V 73 A options
Max Power - PowerPlus Motor 380/400 V 60 A, 460/480 V 52 A options
Knife speed cutting variable 500 - 5,000 rpm
Linear knife speed @ 5.000 rpm 113 m/s
Bowl speed cutting variable 4 - 20 rpm
Knife speed mixing variable 50 - 500 rpm
Bowl speed mixing variable 4 - 20 rpm
Speed of unloader disc variable 50 - 150 rpm
Net weight ± 1,400 kg (± 3,100 lbs)
Sound pressure level @1m ± 74 dB(A)
Operating temperature +5º - +40º C (+41º - +105º F)
Relative humidity level 20 - 90 %
