Reepack Model ReeTray 30 Semi-Automatic Tray Sealer with MAP, Skin, and Pro-Skin

Reepack Model ReeTray 30 Semi-Automatic Tray Sealer with MAP, Skin, and Pro-Skin

Qty:

Description

The ReeTray Model 30 Tray Sealer, MAP Tray Sealer And Skin pack Tray Sealer are all semi-automatic tray sealers. The purpose of this type of packaging is the preservation and protection of any kind of food, fresh or cooked, in preformed trays. Our extensive range of semi-automatic heat-sealing tray sealers offer outputs of up to 24 packs per minute depending on the size of the trays and numbers of trays per cycle. The semi-automatic tray-sealers are capable of either sealing only, with modified atmosphere packaging ( MAP, Vacuum and gas) or the machine can also produce skin packaging which is one of the newest forms of tray packaging.

All of our ReePack Semi-Automatic Tray Sealers are manufactured in Italy using 304L and 316 stainless steel and anodized aluminum for the die set and vacuum chambers. Changing the die sets is fast and easy and can be accomplished in less than 15 minutes.

An automatic film advance as well as an automatic rewinding of scrap film is provided on the ReeTray Model 30 Tray Sealer. A user-friendly electronic control panel manages heating, sealing, vacuum, gas-flush, and skin packaging functions. Any tray can be sealed with our pneumatic system or with our new technology (Eco line) based on electromotors. The electromotor is an ideal system where mobility and air is not available.

RAM Manufacturing Equipment located in Corona, California, offers training, installation, service and parts for all the machines we sell. Including the Reepack Model ReeTray 30 Semi-Automatic Tray Sealer with MAP, Skin, and Pro-Skin and many others. Call or visit us today for more information!

Call, Email or Visit at:
951-734-8152
235 Benjamin Dr. Suite 102
Corona, CA 92879

info@ramaxwell.com

Features

  • Photocell centering for printed film
  • Silenced air compressor

Specifications

Model ReeTray 30
Max Tray Dimensions 17" x 12"
Max Tray Depth 3.75"
Max Diameter Film Roll 11.75"
Max Film Width 18.5"
Vacuum Pump 63 m/3 h
Machine Capacity Cycles 2-6 cyles / min
Compressed Air 6 bar- 7 NI / c
Voltage 230V /3Ph
Overall Dimensions L x W x H 27" x 41" x 60"
Weight 485 lbs

Videos

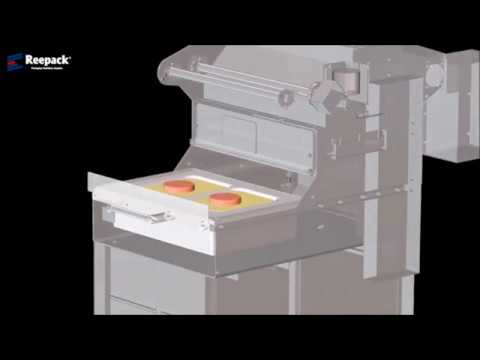

  • ReeTray 30 Semi-Automatice Tray Sealer
