Frimaq Model VCC-Plus Vacuum Packaging Machine
Frimaq Model VCC-Plus Vacuum Packaging Machine
Description
The Frimaq Model VCC-Plus Vacuum Packaging Machine is an automatic process packaging machine, which takes product placed in a bag made of flexible or shrinkable material, then vacuum seals the product.The Frimaq Model VCC-Plus Vacuum Packaging Machine Meats CE Standards.
RAM Manufacturing Equipment located in Corona, California, offers training, installation, service and parts for all the machines we sell. Including the Frimaq Model VCC-Plus Vacuum Packaging Machine and many others. Call or visit us today for more information!
Call, Email or Visit at:
951-734-8152
235 Benjamin Dr. Suite 102
Corona, CA 92879
bob@ramaxwell.com
Features
- The machine can be installed on both sides, towards the left or the right side.
- Vacuum packaging machine of any type of product and any size.
- Adjustable screen.
- 10 programs for different packaging products.
- Vacuum by millibars, by time or both at the same time
- Intermittent vacuum.
- Vacuum alarm not reached.
- Soft-air: filling of soft blinking air.
- Shrinkable and non-shrinkable vacuum bags.
- Operating mode (manual) (semi-automatic) and (automatic).
- Special sealing for products containing oil, blood, fat, etc.
- Movement of conveyor belt with adjustable speed.
- Speed from 1 to 2.5 cycles/minute according to pumps
- Securities according to standards.
- Pneumatic system SMC and Festo.
- Stainless steel chassis ultimate design.
- Leveling feet of level and height.
- Side doors for an easy access to maintenance.
- Motor-driven conveyor belt by drum motor.
- Easy cleaning of the conveyor belt suitable for food products.
- Lip silicone gasket which closes the chamber automatically without pressure.
- Easy changing of the lid gasket without adhesives nor tools.
- Compressed air consumption: 800-1200 liters/minute/6 bars of pressure.
- Maximum power: It depends on the pumps.
- Total weight without pumps about 2500 Kg.
Optional Features
- Bi-active bottom sealing cord of 3 or 10 mm specially for fats, liquids, etc.
- Height of sealing bars: 35 or 70 mm (standard 24 mm).
- Complete cutting.
- Partial cutting.
- Pre-cutting of extra-long bags.
- Trims collector by vacuum suction + compressed air.
- Trims collector just by compressed air.
- Anti-blowing system in the bags.
- BC, independent loading band
- Statistical data export
- Cooling in the sealing.
- Spare parts kit.
- Width between sealing bars: 600 700 800 900 1000 1100 1200 1300
- Useful length of the sealing bar: 1000 1100 1200 1300 1400 1500 1600
Specifications
| Model | VCC-Plus |
|---|---|
| Machine Capability | From 0 to 3.5 cycles/ minute depending on the vacuum pumps |
| Compressed Air Supply | keeping 6 bars of pressure and a consumption 500 l/min |
| Water Supply | Only available with water cooled bars option. Consumption: 100 l/h at a maximum temperature of 20o C. |
| Electrical Power | 400 W voltage, Number of phases 3+ N+ Ground, frequency 50-60 Hz. Maximum power will be 5 kW + pumps. |
| Weight | 5511 lbs. (2500 Kg) Without Pumps |
Videos
-

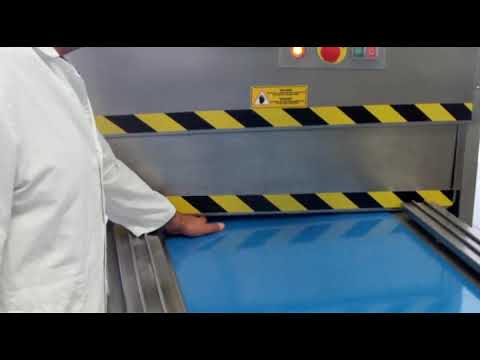

Frimaq Model VCC-Plus Vacuum Packaging Machine - Safety
-

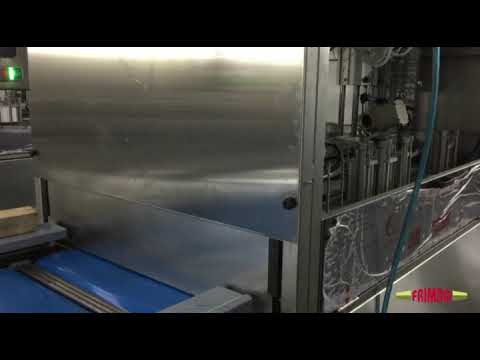

Frimaq Model VCC-Plus Vacuum Packaging Machine - Internal Workings
-

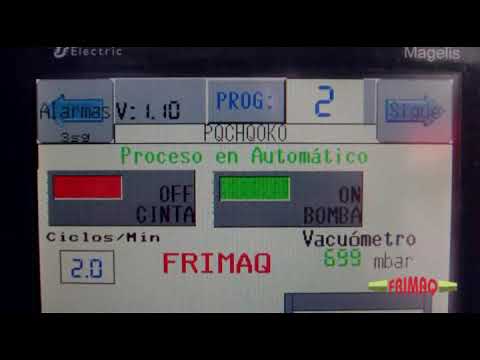

Frimaq Model VCC-Plus Vacuum Packaging Machine - Digital Display in Operation
-
Frimaq Model VCC-Plus Vacuum Packaging Machine - Hand Motion Start
-
Frimaq Model VCC-Plus Vacuum Packaging Machine - Ham
-
Frimaq Model VCC-Plus Vacuum Packaging Machine - Loading Large Bags of Meat
-
Frimaq Model VCC-Plus Vacuum Packaging Machine - Side View of Operation
-
Frimaq Model VCC-Plus Vacuum Packaging Machine - Start to Finish Large Meat Slice Sealing
-
Frimaq Model VCC-Plus Vacuum Packaging Machine - Giant Bags of Meat sealing
-
Frimaq Model VCC-Plus Vacuum Packaging Machine - Meat Bags from Start to Finish
-
Frimaq Model VCC-Plus Vacuum Packaging Machine - Skin Bagged Cheese Blocks
-
Frimaq Model VCC-Plus Vacuum Packaging Machine - Meat Blocks Exiting conveyor
-
Frimaq Model VCC-Plus Vacuum Packaging Machine - Meat Packages Different Shapes
-
Frimaq Model VCC-Plus Vacuum Packaging Machine - Full Cheese Packaging Demonstration start to end
-
Frimaq Model VCC-Plus Vacuum Packaging Machine - Employees Loading
-
Frimaq Model VCC-Plus Vacuum Packaging Machine - Employees Unloading
-
Frimaq Model VCC-Plus Vacuum Packaging Machine - Small Long Meat Packages
-
Frimaq Model VCC-Plus Vacuum Packaging Machine - Empty Bag Loading Demonstration
-
Frimaq Model VCC-Plus Vacuum Packaging Machine - Emptying plastic cut off
-
Frimaq Model VCC-Plus Vacuum Packaging Machine - Closeup of Seal
-
Frimaq Model VCC-Plus Vacuum Packaging Machine - Double Stacked Salmon Seal
-
Frimaq Model VCC-Plus Vacuum Packaging Machine - Close up of Machine Tubes and Electronics
-
Frimaq Model VCC-Plus Vacuum Packaging Machine - Taking apart the Conveyor
-
Frimaq Model VCC-Plus Vacuum Packaging Machine - Adjusting Seal Bars
-
Frimaq Model VCC-Plus Vacuum Packaging Machine - Conveyor Belt Tension
-
Frimaq Model VCC-Plus Vacuum Packaging Machine - Removing and Replacing Seal Bars
-
Frimaq Model VCC-Plus Vacuum Packaging Machine - Internal Camera Angle Bag Sealing
-
Frimaq Model VCC-Plus Vacuum Packaging Machine - Massive Sealing of Cheese Rounds
