Nantsune Model SSN-180 Apollo Industrial Diagonal Fish and Meat Multi-Slicer

Nantsune Model SSN-180 Apollo Industrial Diagonal Fish and Meat Multi-Slicer

Qty:

Description

The Nantsune Model SSN-180 Apollo Industrial Diagonal Fish and Meat Multi-Slicer features 3 cutting functions (body width, diagonal and parallel) in one machine. The Nantsune Model SSN-180 Apollo Industrial Diagonal Fish and Meat Multi-Slicer automatically adjusts the cutting width according to the height of the food. The angle adjustment (0° to 60°) is automatically set on the touch screen.

With the Nantsune Model SSN-180 Apollo Industrial Diagonal Fish and Meat Multi-Slicer's Shape cutting function the sliced goods are arranged on the receiving conveyor under the same shape as they are fed in!

The Nantsune Model SSN-180 Apollo Industrial Diagonal Fish and Meat Multi-Slicer is easy-to-clean and hygienic, the entire conveyor can be easily washed. This machine utilizes a round blade that maintains excellent sharpness.

The Nantsune company since 1925, together with food processing manufacturers in the food processing industry, has been consistently focusing on creating value for its customers. Nantsune manufactured and sold the world's first thinly sliced raw meat slicer.

RAM Manufacturing Equipment located in Corona, California, offers training, installation, service and parts for all the machines we sell. Including the Nantsune Model SSN-180 Apollo Industrial Diagonal Fish and Meat Multi-Slicer and many others. Call or visit us today for more information!

Call, Email or Visit at:
951-734-8152
235 Benjamin Dr. Suite 102
Corona, CA 92879

bob@ramaxwell.com

Features

  • ●Three cutting functions (body width, diagonal and parallel) in one machine can be sliced!
  • ●Continuous horizontal feeding slot.
  • ●Angle adjustment (0° to 60°) is automatically set on the touch screen!
  • ●Shape cutting! The sliced goods are arranged on the receiving conveyor under the same shape as they are fed in!
  • ●The whole conveyor can be washed.
  • ●The sharpness is excellent with the round blade slice!
  • ●Easy to clean and hygienic!

Specifications

Model SSN-180 Apollo
Dimensions (L x W x H) 68.8" x 55.1" x 51.1"
Machine Weight 771.6 lbs.
Motor Capacity For round blade 0.2kW, For feeder 0.4kW (AC servo), For angle tilting 1kW (AC servo), For left and right drive 0.4kW
Power Consumption 0.46kW (50Hz/60Hz no load)
Sliceable Dimensions W180 x L700 x H80mm (angle 0°), W180 x L700 x H35mm (angle 60°)
Slicing Performance Maximum 70 pieces/min
Slice Thickness (0)~8mm
Applicable Temperature (Fishery Items) 17.6 - 26.6 degrees Fahrenheit (-8℃~-3℃)
Applicable Temperature (Meat Items) 30.2 - 26.6 degrees Fahrenheit (-1℃~-3℃)
Air Supply 0.5MPa 13.1L/min tube outer diameter 8mm
Diagonal Cutting Surface Angle 0°~60°
Conveyor Dimensions (L" x W" x H") 39.3" x 10.4" (belt: 7.8") x -"
Motor Capacity 0.09kW

Videos

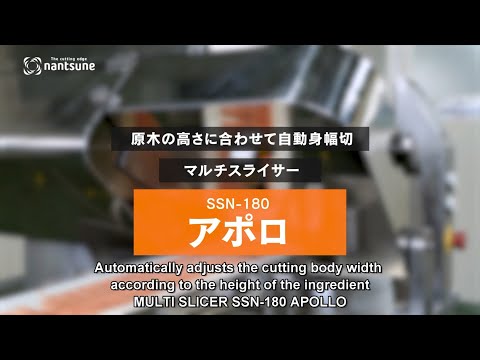

  • Nantsune Model SSN-180 Apollo Industrial Diagonal Fish and Meat Multi-Slicer - Slicing Salmon Demonstration

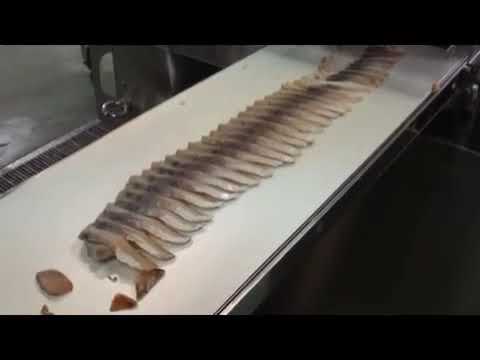

  • Nantsune Model SSN-180 Apollo Industrial Diagonal Fish and Meat Multi-Slicer - Slicing Different Types of Fish

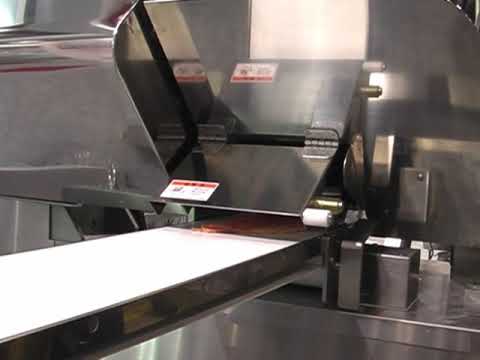

  • Nantsune Model SSN-180 Apollo Industrial Diagonal Fish and Meat Multi-Slicer - Korean Demonstration
