PSS Model SFV 705 Continuous Vacuum Stuffer

PSS Model SFV 705 Continuous Vacuum Stuffer

Qty:

Description

The PSS Model SFV 705 Continuous Vacuum Stuffer is a multifunctional device designed for small, medium and large industrial food processing operations. It provides near perfect filling of meat and other food products.

The PSS Model SFV 705 Continuous Vacuum Stuffer guarantees effective usage and ensures a continual process of metering and filling of processed materials. The processed material is fed into the PSS Model SFV 705 Continuous Vacuum Stuffer's hopper, where it is caught by two feeding worms that gently move it towards the metering device or to direct filling through the tube to the next process such as a clipping machine.

The PSS Model SFV 705 Continuous Vacuum Stuffer can also be used with the additional grinding attachment, which ensures quality final grinding and subsequent material filling into appropriate casings. The PSS Model SFV 705 Continuous Vacuum Stuffer comes standard equip with a vacuum system, which inhibits the possible creation of air bubbles in the final product.

RAM Manufacturing Equipment located in Corona, California, offers training, installation, service and parts for all the machines we sell. Including the PSS Model SFV 705 Continuous Vacuum Stuffer and many others. Call or visit us today for more information!

Call, Email or Visit at:
951-734-8152
235 Benjamin Dr. Suite 102
Corona, CA 92879

Features

  • All #304 Stainless Steel Construction
  • For meat with a temperature from +3 °C to +50 °C
  • Without mixing spiral
  • Multifunctionality
  • Ideal handling of raw material
  • Resistance
  • Unique design
  • Improved ergonomics
  • Shorter tube of worms and shorter worms
  • Front support of the worms (this increases the use time by 1.5 to 2 times)
  • Maximal adaptation to technology of sausage production
  • Very stable machine
  • Easy cleaning of the underneath area is ensured by the solid base and height adjustable feet
  • Obtaining final product of excellent quality and ideal structure
  • Lifetime of the main drive with the possibility of operating 24 hours a day without interruption

Optional Features

  • Dosing device
  • Dosing Tube
  • Dispensing Head
  • Straight Tube or Knee
  • Trolley
  • Lifting Device
  • Forming Head

Specifications

Model SFV 705 Continuous Vacuum Stuffer
Dimensions (L x W x H) 36.8" x 38.3" x 68.1"
Maximum Working Pressure 23 bar
Output 4,409 lbs. per hour (2,000 kg. per hour)
Deviation of Final Product Weight ± 1%
Hopper Volume 31.7 gallons (120 liters)
Input 7.95 kw
Machine Weight 936 lbs.

Videos

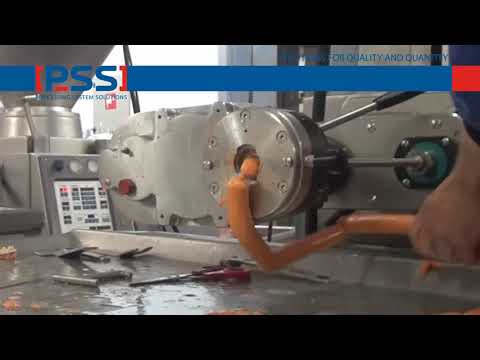

  • PSS Model SFV 705 Continuous Vacuum Stuffer - Demonstration

  • PSS Model SFV 705 Continuous Vacuum Stuffer - Sausages

  • PSS Model SFV 705 Continuous Vacuum Stuffer -Minced meat portions finalization
