MHS Model PCE 70-36 Horizontal Slicer
Download:
MHS Model PCE 70-36 Horizontal Slicer
Description
The MHS Model PCE 70-36ES Horizontal slicer has the capability of cutting meat, meat rolls, chops, bacon, roasts, sausages, and cheeses making the MHS Model PCE 70-36ES a perfect machine for any of your slicing needs. Ideal for medium to large food processors. Including user-friendly operations with the integrated LCD displays, allows the operator to control:Slice Thickness
Number of Slices
Speed Control of Conveyor Belt for Shingling Product
Run Off Time Conveyor Belt
Error Messages : e.g. opened flaps
Statistic Menu: e.g. Counter, Service Intervals
The MHS Model PCE 70-36ES Horizontal Slicer has the capability of setting 5 different slice thicknesses during the slicing operation. Number of slices per thickness can also be programed the with MHS Model PCE 70-36ES horizontal slicer slicing software. With the optional flap start function, productivity will increase with one less step for operators. "Flap start" initiates the slicer once the operator has loaded the product and closes the lid.
Production is a breeze with the MHS Model PCE 70-36ES horizontal slicers. They have the capability of producing up to 220 slices a minute and 100 store-able recipes. All while including the ease of comfortable operations.
RAM Manufacturing Equipment is located in Corona, California. We offer training, installation, service and parts for all the machines we sell. Including the MHS Model PCE 70-36 Horizontal Slicer and many others.
Call, E-mail or visit us today for more information!
235 Benjamin Dr. Suite 102
Corona, CA 92879
951-734-8152
info@ramaxwell.com
Features
- Designed for heavy duty, the operation is reduced to a minimum. The machine can be operated extremely comfortable step by step via the integrated LCD display. Clear symbols ease a fast input and gather all cutting data at a stroke
- Exact portioning thanks exact feed with servo - technology and anti - friction surface
- The operator keyboard is made of synthetic material with single removable buttons for fast and easy cleani ng
- Up to 200 slices/minut
- Short cycles due to automatic return limite
- Start and search device
- Distribution of remaining slice
Optional Features
- Automatic distribution of the remaining slice
- Automatic flap starts after closing the flap
- Pneumatic grippe
- Automatic ejector for remaining slic
Specifications
| Model | PCE 70-36ES |
|---|---|
| Chamber Length | 27" |
| Chamber Height | 14" |
| Chamber Width | 14" |
| Product Thinkness | .5 to 700 mm |
| Slices per Minute | 200 |
| Programs | 100 |
| Motor | 8 HP |
| Voltage | 230 /460V / 60 Hz |
| Dimensions | 78" x48 " x 58" |
| Weight | 950 lbs |
Videos
-
Slicing and Portioning Machines
-

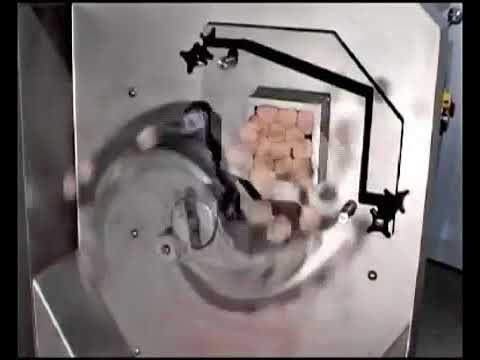

MHS PCE KS Horizontal Slicing and Portion Control Machine
-

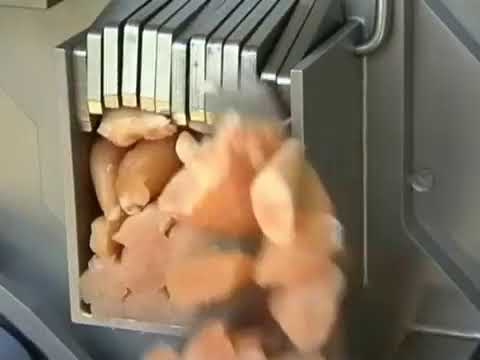

MHS Meat Slicers-cooked chicken breast slicing, 4 mm slices
-

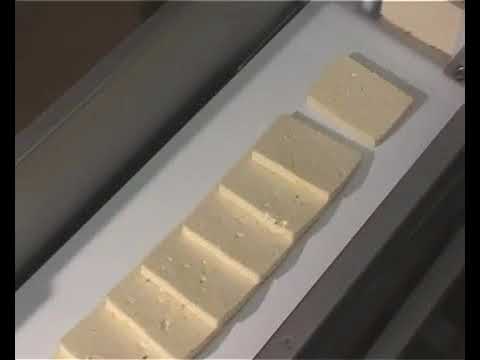

MHS Meat Slicers-cheese slicing, 6 mm slices
-

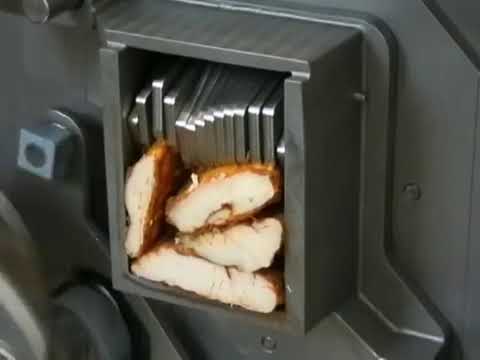

MHS Meat Slicers-chicken breast slicing, 20 mm slices
-
MHS Meat Slicers-Feta cheese slicing
-

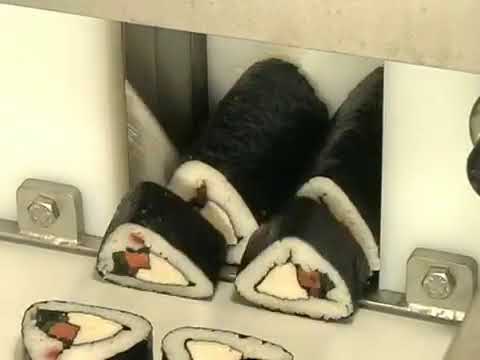

Horizontal Slicers and Portioning Machines - sushi slicing
-

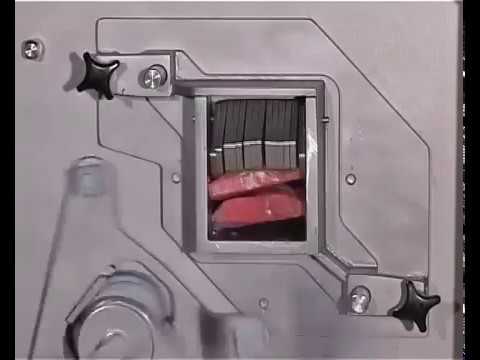

MHS Meat Slicers-Salmon fish slicing, 5 mm slices with gripper frame
-
