MHS Model ICC36 Horizontal Meat Slicer and Portion Control Machine
MHS Model ICC36 Horizontal Meat Slicer and Portion Control Machine
Description

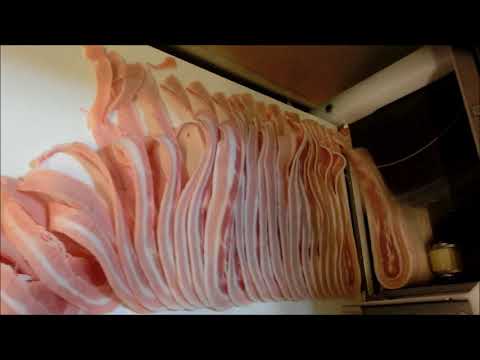

The MHS Model ICC36 Horizontal Meat Slicer and Portion Control Machine features all # 304 stainless steel construction and features an auto loading system where the product can be loaded continuously without having to stop the machine or open and close any chambers. The in-feed conveyor height is about 40 inches which makes it very comfortable for the operator and reduces back and arm strain. The removable parts are utilized to make slicing and portioning machines easy to clean, sanitize and maintain. The MHS Model ICC36 Horizontal Meat Slicer and Portion Control Machine offers options such as double blades, take-away conveyors and programmable slicing parameters to allow the machine to be configured to meet your specific needs. Contact R.A. Maxwell and associates so we can educate you or your staff today on the capabilities of the different products and processes that our horizontal meat slicers and portioning machines can be used for as well as help you purchase the right model with the proper options to meet your specific needs.We have sold the MHS Model ICC36 Horizontal Meat Slicer and Portion Control Machine to companies slicing beef products such as beef jerky, bacon, Korean BBQ meats, pet food and pet treats, salami and other hard deli meats, cheese steak, thin sliced Milanese, boneless ribeye and New York Strips.

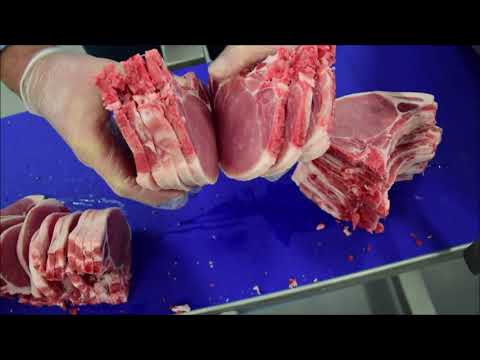

The MHS Model ICC36 Horizontal Meat Slicer and Portion Control Machine is also used to slice bone-in porkchops and boneless pork products. As well as poultry such as chicken breast and thigh meat.
If you want to purchase one of the best horizontal slicers and portion control machines on the world market, contact us about our MHS Model ICC36 Horizontal Meat Slicer and Portion Control Machine. When you purchase a horizontal slicer from RAM Manufacturing Equipment, we will provide training on safety, maintenance, cleaning and how to operate the MHS Model ICC36 Horizontal Meat Slicer and Portion Control Machine.
RAM Manufacturing Equipment located in Corona, California, offers training, installation, service and parts for all the machines we sell. Including the MHS Model ICC36 Horizontal Meat Slicer and Portion Control Machine and many others. Call or visit us today for more information!
Call, Email or Visit at:
951-734-8152
235 Benjamin Dr. Suite 102
Corona, CA 92879
bob@ramaxwell.com
Features
- Up to 600 cuts/minute (double blade 1200)
- Easy integration into production line
- Shorter cycles through continuous supply of products
- Starting device
- Easy operation via LCD touch display with clear symbols
- 100 programs storable
- Equal distribution of products according to the number of slices
- Slicing software for cutting in section
- Compartments and separation of the products
- Adjustment of blade speed
- Exact feed through forward feed belt
- Forward feed mode selectable, continuous or single cut
- Optimum hold of the product due to automatic gripper
- Single cut function with higher speed of blade to increase slice quality on lower production rate
- Output conveyor belt
- Stainless steel flaps
- ICC 28 Cross Section 11”W x 7”H
- ICC 36 Cross Section 14”W x 7”H
Optional Features
- Pneumatic gripper
- High accuracy even with bone-in products with MHS micro-toothed blades
- Pre-weighing available
- 360° Camera’s
- Volume identification of the products
- Fixed weight portioning
- Simple operation via display
- Numerous programs for perfect cutting
- Individually programmable
- Easy cleaning
Specifications
| Model | MHS Model ICC36 Portion Control Slicing Machine |
|---|---|
| Max Input | variable |
| Cross section mm (WxH) | 14 3/16 " x 7 3/32 " |
| Dimensions (WxDxH) in mm | 140 23/32" x 44 9/32"x 40 5/32" |
| Horse Power | 12.1 HP |
| Connection | 400 V / 12.1 kW (other voltage on request) |
| Weight (in kg) | 1900 lbs |
| Slices/minute | 60 - 500 |
| Slice Thickness | 0,5 - unlimited |
| Suitability | industry |
| Start device | yes |
| Distribution of remaining slice | yes |
| Slicing software | yes |
| portioning | yes |
| Fixed weight slicing | yes |
| Voltage | 230 / 460 V / 3ph |
