Jeros Model 300 Tunnel Washer

Jeros Model 300 Tunnel Washer

Qty:

Description

These JEROS Crate & Pan Washer Models are specially developed and designed for small and medium sized companies and are specifically suitable for all plastic crates, totes, baking pans and other comparable products. It is manufactured throughout in stainless steel.

The pump and heating elements are protected against drying out by means of a low water level security system. These machines have a Main Wash section and a separate Rinse Section. In the main wash section items are washed with recycled water.

Recycled water is filtered by an easily removable filter system. Wash water is electrically heated and pumped by a stainless steel circulation pump to the jet spray nozzles. In the rinse section items are rinsed with fresh water. Rinse water replaces water in main wash tank. Surplus water and surface pollution are drained by an overflow.

RAM Manufacturing Equipment located in Corona, California, offers training, installation, service and parts for all the machines we sell. Including the Jeros Model 200 Tunnel Washer and many others. Call or visit us today for more information!

Call, Email or Visit at:
951-734-8152
235 Benjamin Dr. Suite 102
Corona, CA 92879

bob@ramaxwell.com

Features

  • Conveyor system in stainless steel
  • A great wash result with a new and unique wash system
  • No down holder necessary
  • Long neutral zone guarantees optimal rinse result

Optional Features

  • One man operation with return hood system (Optional on the Model 200 and 200XL
  • Soap Dosage
  • Rinse Dosage
  • After rinse heater
  • Adjustable conveyer speed
  • Conveyor/lattice-belt
  • Blowing Unit JEROS 200TD
  • Call your sales person for optional price and custom built machines

Specifications

Model Model 200 Model 200XL Model 300
Washing Tank Capacity 45 Gallons 65 Gallons 65 Gallons
Rinsing water temperature 185 °F 185 °F 185°F
Rinsing System Frame Nozzles Frame Nozzles Frame Nozzles
Overall Dimensions H x W x D (closed) 65" x 35" x 120" 65" x 40" x 120" 65" x 38" x 142"
Overall Dimensions H x W x D (Open) 90" x 35" x 120" 90" x 40" x 120" 90" x 40" x 142"
Washing Area H x W 19” x 18.5” 18.5” x 25.5” 18.5” x 25.5”
Water Consumption per Wash Depends on wash load Depends on wash load Depends on wash load
Plastic Crates (Variable) HxW 18" x 18" 25" x 18" 18 x 25
Crates Per Hour 150-250 250-300 175-350
Output Motor 480V/ 60Hz/ 3PH 28HP 32HP 32HP
Number of Heating Elements 4 4 4
Fuse AMPS 32 50 50
Motor Protecting Switch Yes Yes Yes
Number Of Filters 1 1 1
Water Connection Temperature 120°F 120°F 120°F
Drain Dimension 2" 2" 2"
Production Material Stainless Steel Stainless Steel Stainless Steel
Locking Caster Wheels Yes Yes Yes

Videos

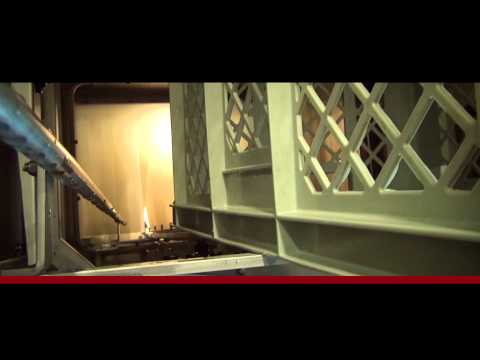

  • Jeros Model 300 Tunnel Washer
