Description

Bring ultra-thin, uniform slicing of frozen proteins to your line—with automatic infeed, high-speed servo control, and touch-screen simplicity. The SHF-440 delivers production-grade throughput while protecting cut quality and operator safety.

At-a-Glance Highlights:
Slices as thin as 0.5 mm with excellent uniformity for hot-pot, bulgogi, shabu-shabu, brisket, carpaccio-style items, and more.
High-speed output: 150–320 cycles/min to keep pace with industrial production targets.
Automatic infeed → cut → discharge prioritizes operator safety and consistency.
Touch-screen control with automatic thickness setting for easy, repeatable changeovers.
Optimized to cut at −9 °C to −2 °C, eliminating pre-thaw losses and preserving texture.
What It Does Best (Applications)
Ultra-thin slices for Korean BBQ, bulgogi, shabu-shabu, sukiyaki, hot-pot
Portion-ready beef brisket, sirloin, steak preforms, compressed/formed meats
Frozen pork, beef, lamb, duck, and compatible semi-frozen products (e.g., cheese blocks, certain vegetables) within the size window
(Actual run-list depends on product temperature, fat ratio, and structure.)

Why Processors Choose SHF-440 (Benefits)
Higher yield, less scrap: High-speed, rigid slicing mechanics minimize smearing and fines on frozen product.
Consistent portions = predictable margins: Servo-controlled thickness ensures spec adherence across long runs.
Labor-lite operation: Automated feed and discharge reduce manual handling and training time.
Fast changeovers & sanitation: Tool-less access and simplified disassembly help you turn the line quicker.
Operator-first design: Automated sequence and guarded cutting area elevate safety practices.

Key Features
High-servo slicing head with tight tolerance control across frozen temperature band.

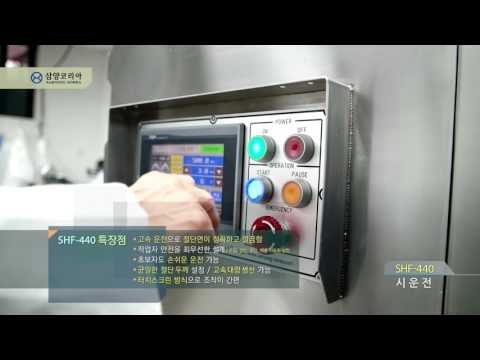

Touch-screen HMI for thickness setpoint, run status, and quick diagnostics.
Auto thickness mode (0.5–30 mm) with repeatable presets for SKU changes.
Automatic infeed/cut/discharge path to maintain throughput and protect users.
Industrial frame and guides sized for large frozen blocks within a 17.3"× 25.6"× 8.6" window.

Technical Specifications (Model SHF-440)
Cutting window (W×L×H) 17.3"× 25.6"× 8.6"
Slice thickness 0.5 – 30 mm (automatic setting)
Speed 150 – 320 cycles/min
Optimal product temperature max 15.8 °F to 28.4 °F
Power 3-phase 220/380 V, 7 HP (5.3 kW), 50/60 Hz
Air 6 bar supply
Machine dimensions (L×W×H) 2475 × 1160 × 1550 mm
Net weight ~720 kg

Utilities & Integration
Electrical: 3-phase 220/380 V, 50/60 Hz (5.3 kW). Coordinate with facility power for dedicated circuit.
Pneumatics: Clean, dry air at 6 bar for drive/ actuation. Include filtration and condensate management.
Upstream/Downstream: Works with block freezers/tunnel chillers upstream and pack-off, stackers, or shinglers downstream (customer-specific).

Sanitation & Maintenance
Simplified teardown for cleaning; food-contact components are accessible for wash-down.
Smooth surfaces and guarded zones reduce soil traps; follow your SSOPs and validated chemical dwell times.
Preventive maintenance: inspect blade condition, guides, and pneumatic seals on a defined schedule (usage-based).

Operator Safety
Automatic infeed-to-discharge sequencing minimizes hand contact in the cutting zone.
Guarded access with HMI-controlled operation and emergency-stop logic. (Follow all lock-out/tag-out and local safety codes.)

Options & Accessories (Typical)
Discharge conveyors (straight or shingle-stack)
Product stabilizers for fatty or marbled cuts
Custom block spacers/fixtures within the 17.3 inch width window
Integration kits for downstream portioning/packing

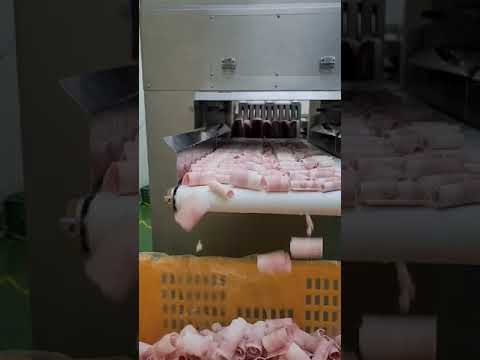

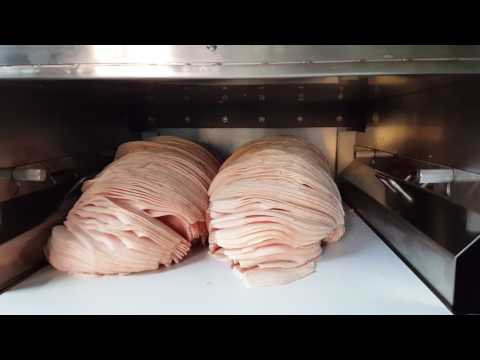

See It In Action
Watch a quick demo of the RAM SHF-440 Industrial Frozen Meat Super-Speed Slicer in operation: https://www.youtube.com/watch?v=yexOmwZfYOQ

Who It’s For
Mid-to-large processors making thin-slice meats at scale
Regional co-packers adding Asian-style hot-pot/BQQ items
Retail/club suppliers needing uniform shingled packs with strict weight control

Ready to Spec It In?
RAM Manufacturing Equipment can validate your cut program (product temp, thickness, throughput) and advise on utilities, layout, and lead time.

Call: 951-734-8152 • Email: support@rameqpt.com
