Promarks Model 1000 Continuous Vacuum Tumbler

Promarks Model 1000 Continuous Vacuum Tumbler

Qty:

Description

The Promarks TM Series continuous style marinating vacuum tumblers utilize a vacuum system that allows vacuum to be drawn, vented and re-drawn all while the drum is in motion. This system and our PV-03 microprocessor control panel allows the TM Series to provide greater pick up due to the “sponge effect” caused by this system. Think of this system like your heart pumping the blood in and out like a messaging affect. This type of system has been the standard of the industry in Europe for many years because of its overall advantage compared to non-continuous vacuum systems. Another advantage to the PV-03 control system is the “set it and forget it” capability when your operation calls for multiple vacuum, vent and mixing cycles as the desired sequence can all be programmed into the PV-03 then the machine is automatic after the cycle has begun. All this makes the TM Series the machines to have when you are ready to take your vacuum marinating operation to the next level.

Promarks TM1000T continuous marinating vacuum tumbler utilizes an internal vacuum snorkel that allows the vacuum inside the drum to be pulled and vented while the machine is still in the mixing mode. This system allows for greater pick up due to the “sponge” effect thus giving your product more of the value-added flavor and juiciness you use a continuous marinating vacuum tumbler to achieve. With all stainless-steel construction and extended height, to allow buggies to be placed under them as well as their set it and forget it PV-03 control system these units are the most versatile Continuous marinating vacuum tumblers on the market today.

Features

  • All stainless-steel construction - Ease of cleaning / durable
  • Reverse Discharge Function - Ease of use
  • PV-03 microprocessor control - Multistage vacuum/vent/tumble
  • Digital vacuum control - Accuracy & repeatability
  • Variable Speed drum - Product versatility
  • DVP-20 European Vacuum Pump - High performance
  • Voltage: 110V/60HZ - Ease of operation
  • In line liquid trap - Protects the vacuum pump
  • Casters - Mobility
  • Leveling legs - Operational stability
  • Full one-year service package - Saves money

Optional Features

  • Busch vacuum pumps - Maximum performance / 2 year warranty
  • Auto-drain system liquid trap - Ease of use
  • Larger Busch vacuum pumps - Shorter cycle times
  • Custom Voltage - Versatility

Specifications

Model 150 300 500 1000
Barrel Capacity 150 lbs. 300 lbs. 500 lbs. 1000 lbs.
Batch size per cycle 90 lbs. 200 lbs. 400 lbs. 700 lbs.
Vacuum Pump 20m3/h (0.9kw) 20m3/h (0.9kw) 20m3/h (0.9kw) 20m3/h (0.9kw)
Voltage 110V / I ph/ 60HZ 110V / I ph/ 60HZ 110V / I ph/ 60HZ 110V / I ph/ 60HZ
AMPS 20 20 20 20
Machine Dimensions L x W x H 48" x 37" x 55" 53" x 37" x 57.5" 57" x 37" x 63" 81" x 68" x 70"
Weight in Pounds 625 lbs 650 lbs. 800 lbs. 1620 lbs.

Videos

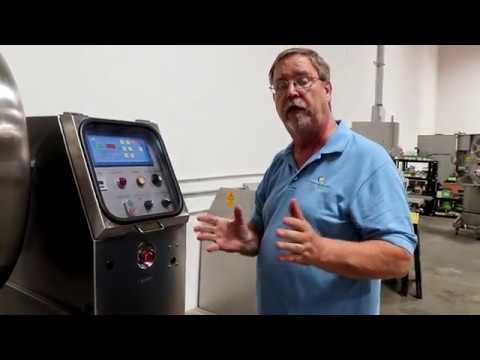

  • Promarks Model 1000 Continuous Vacuum Tumbler
